Direct Forming to Square ERW Tube Mill
Direct production of square and rectangular tube from flat strip.
Progressive corner pre-bending forms an open square or rectangular section before HF welding and sizing. The process reduces unnecessary deformation, roll investment and changeover time for a designed size range.
COMPLETE PRODUCT INFORMATION
Product overview and technical information
Direct forming to square does not first roll the strip into a round tube. Flat steel strip is progressively roll formed into an open square or rectangular section, then high-frequency resistance welded and sized to the target profile in one continuous route.
Process Features
- 01
One roll set can cover a designed range of square and rectangular tubes, reducing roll purchasing cost by about 50%.
- 02
Rolls can be changed without removing the main shafts or stands, shortening changeover time by about 40%.
- 03
Only the four corners are progressively deformed, eliminating unnecessary deformation and reducing total energy consumption by about 15%–20%.
- 04
The load on each stand is lower, reducing wear and helping extend equipment service life.
Reference Production Range
| Item | Reference range |
|---|---|
| Square and rectangular tube | 20×20–500×500 mm |
| Wall thickness | 0.5–12 mm |
| Optimum products | Medium/heavy-wall and high-strength structural tube |
Applications
- HSS structural hollow sections
- Machinery frames
- Large steel-structure columns
- Heavy-wall guardrail tube

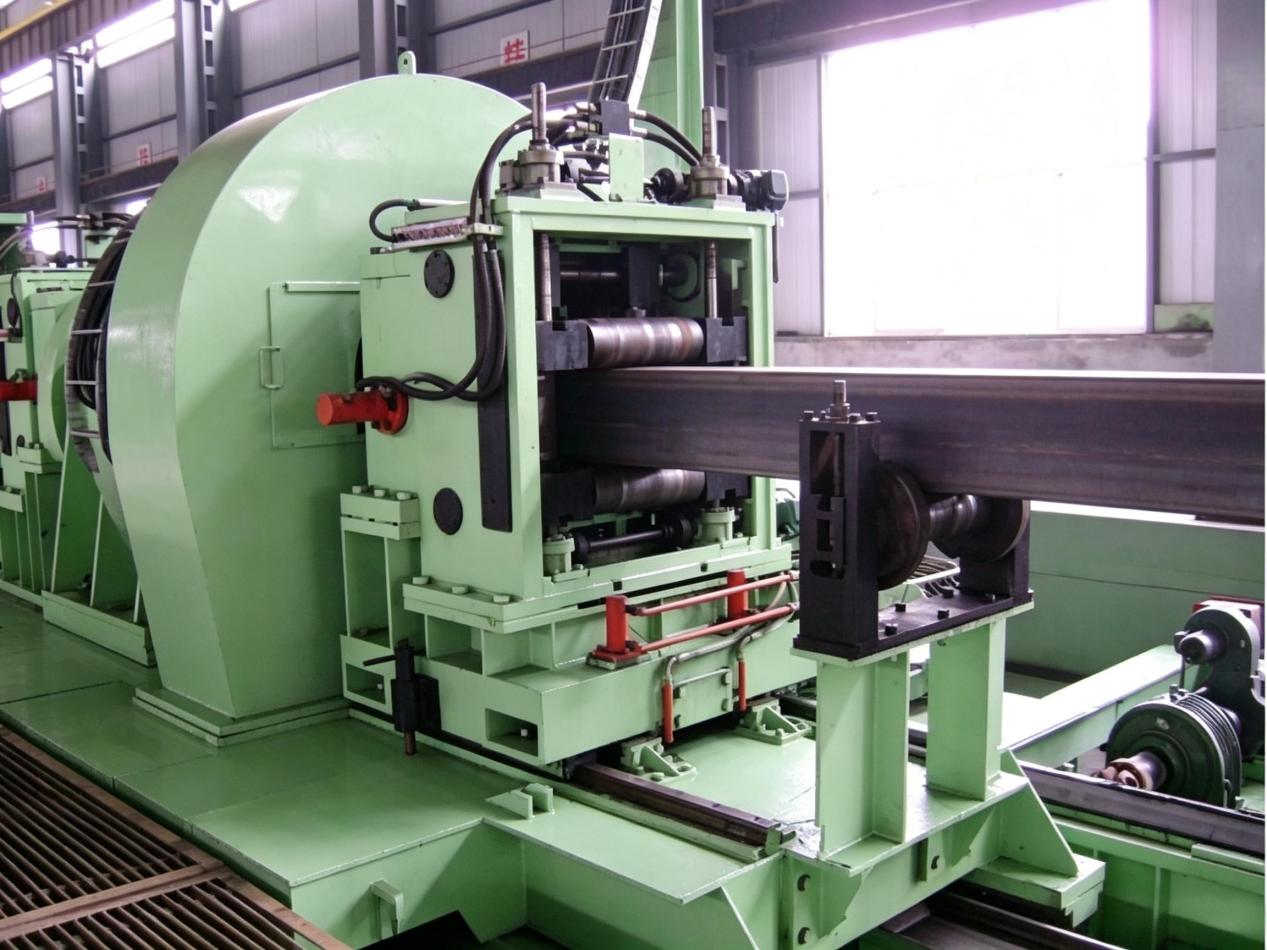

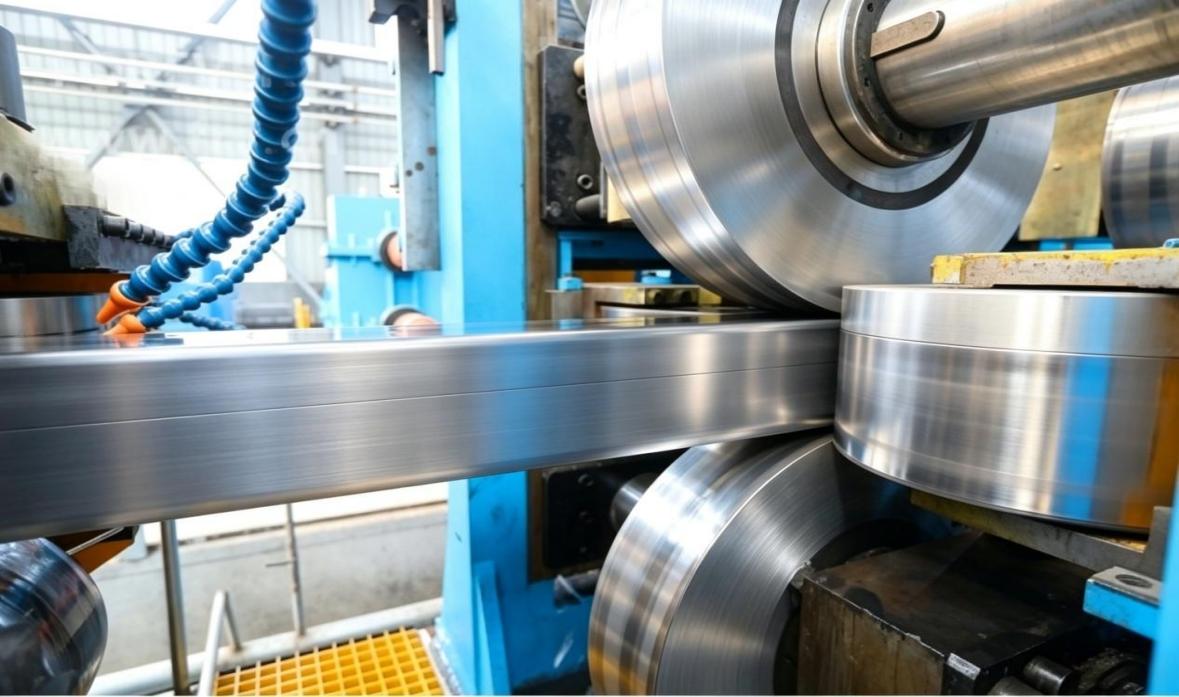

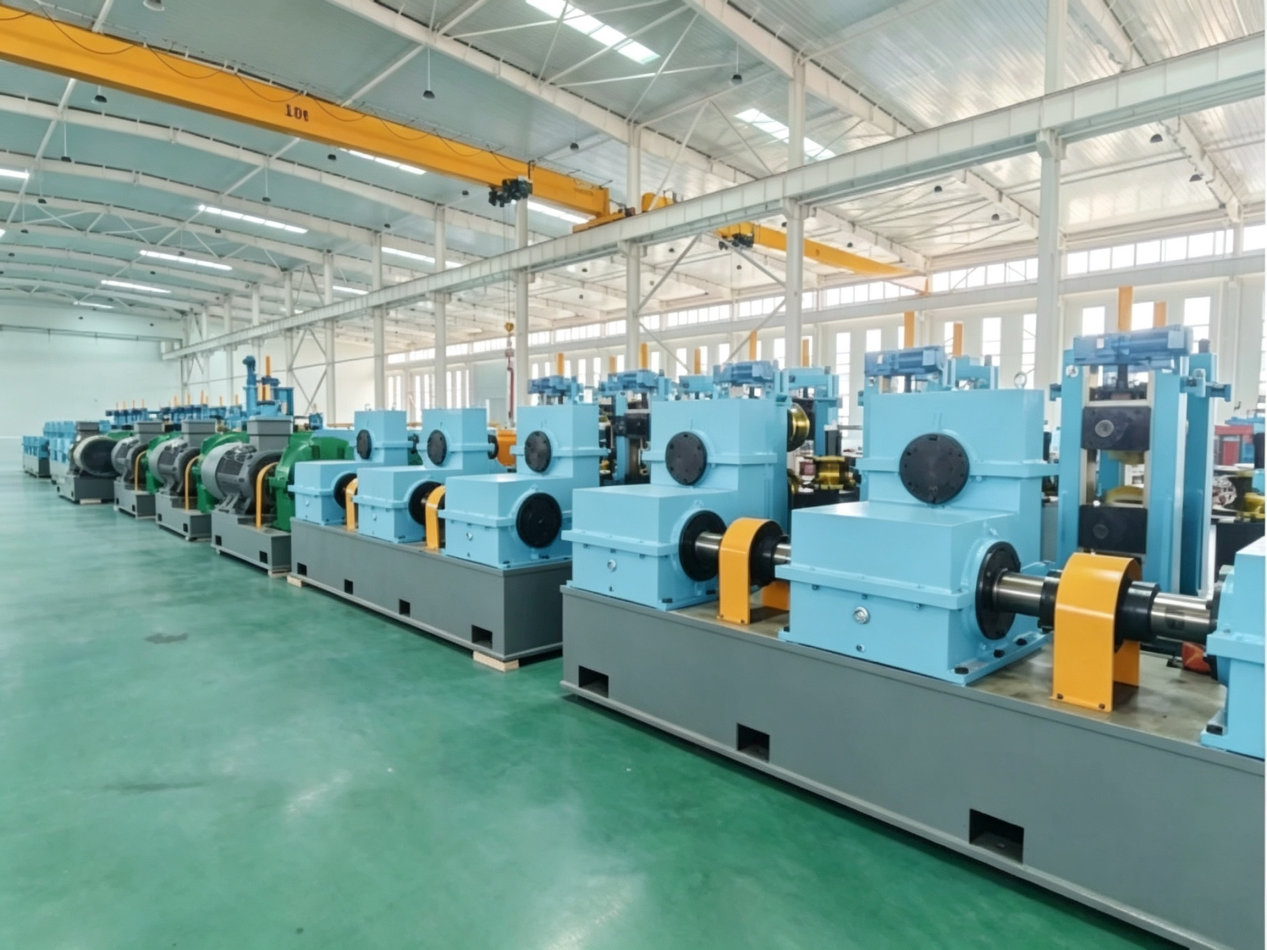

Images from this product category
