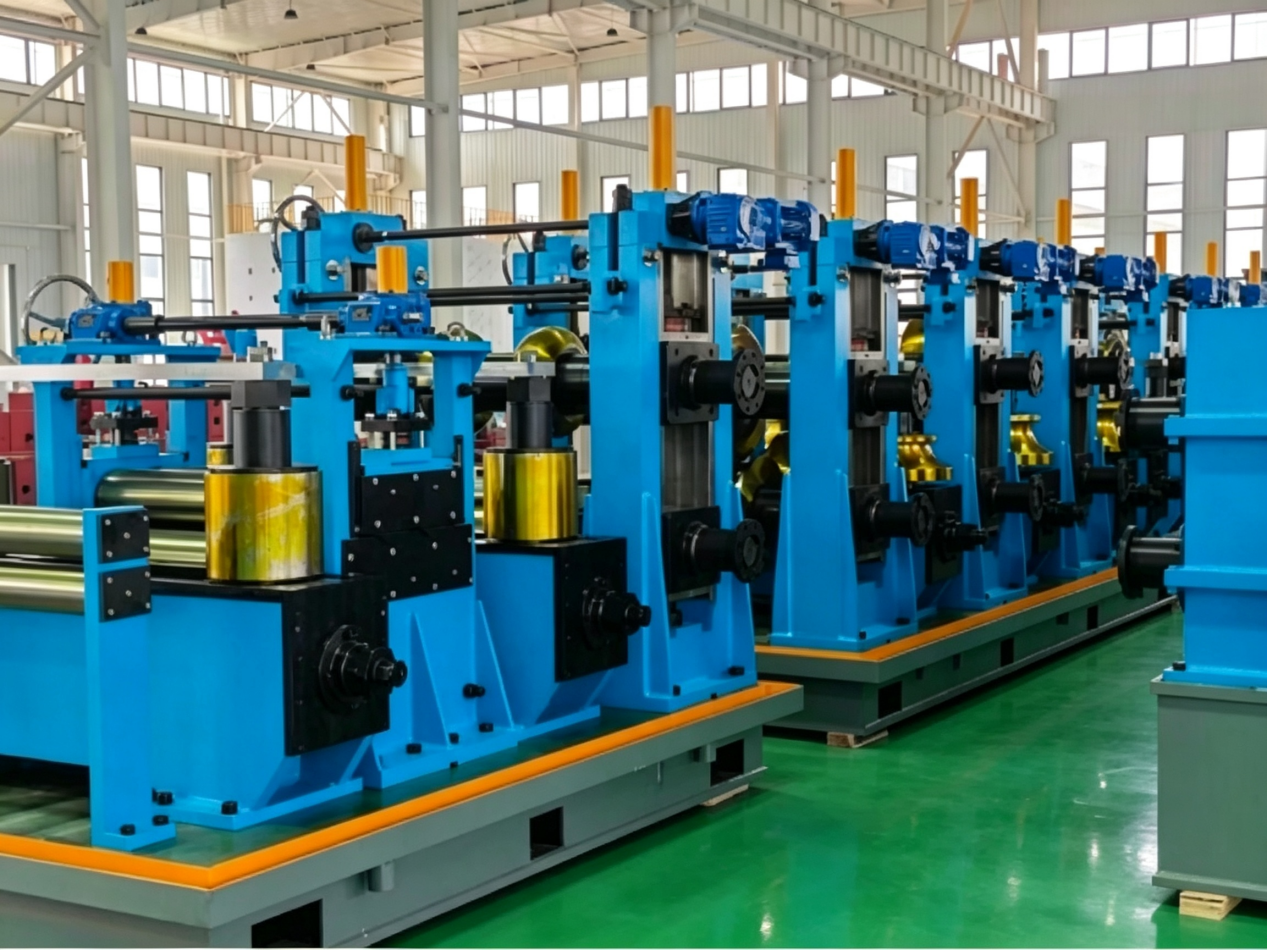

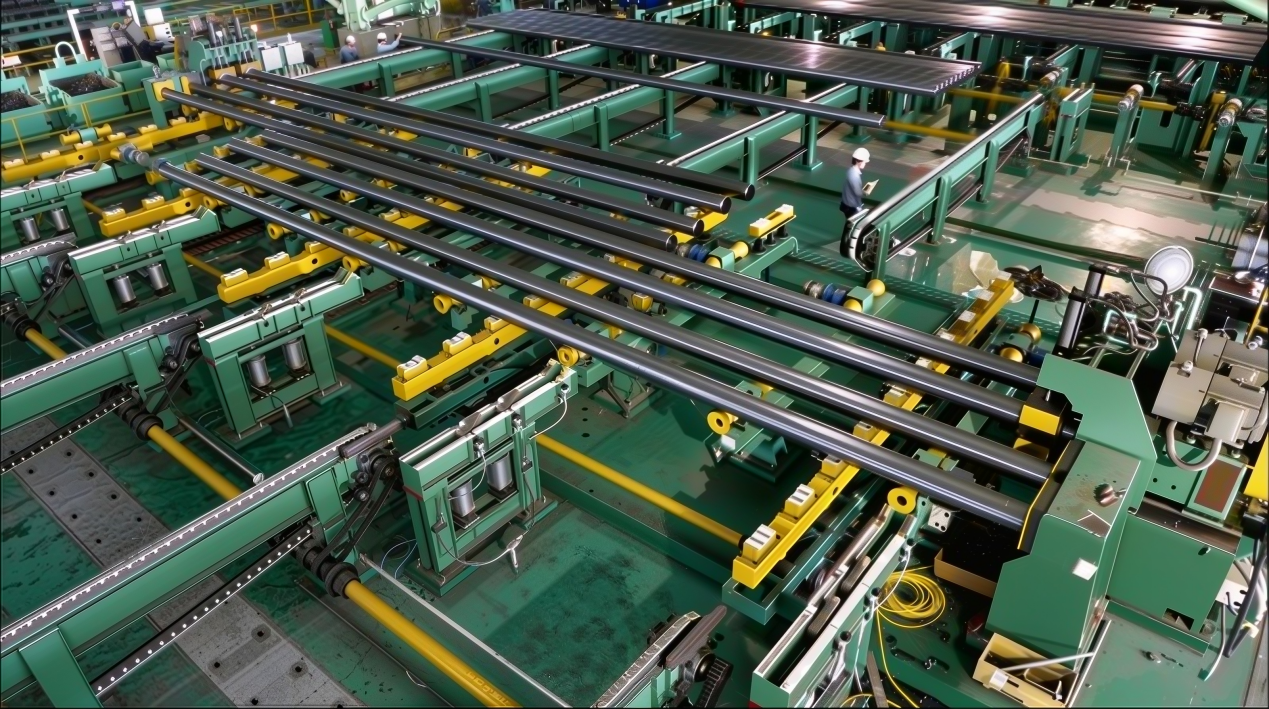

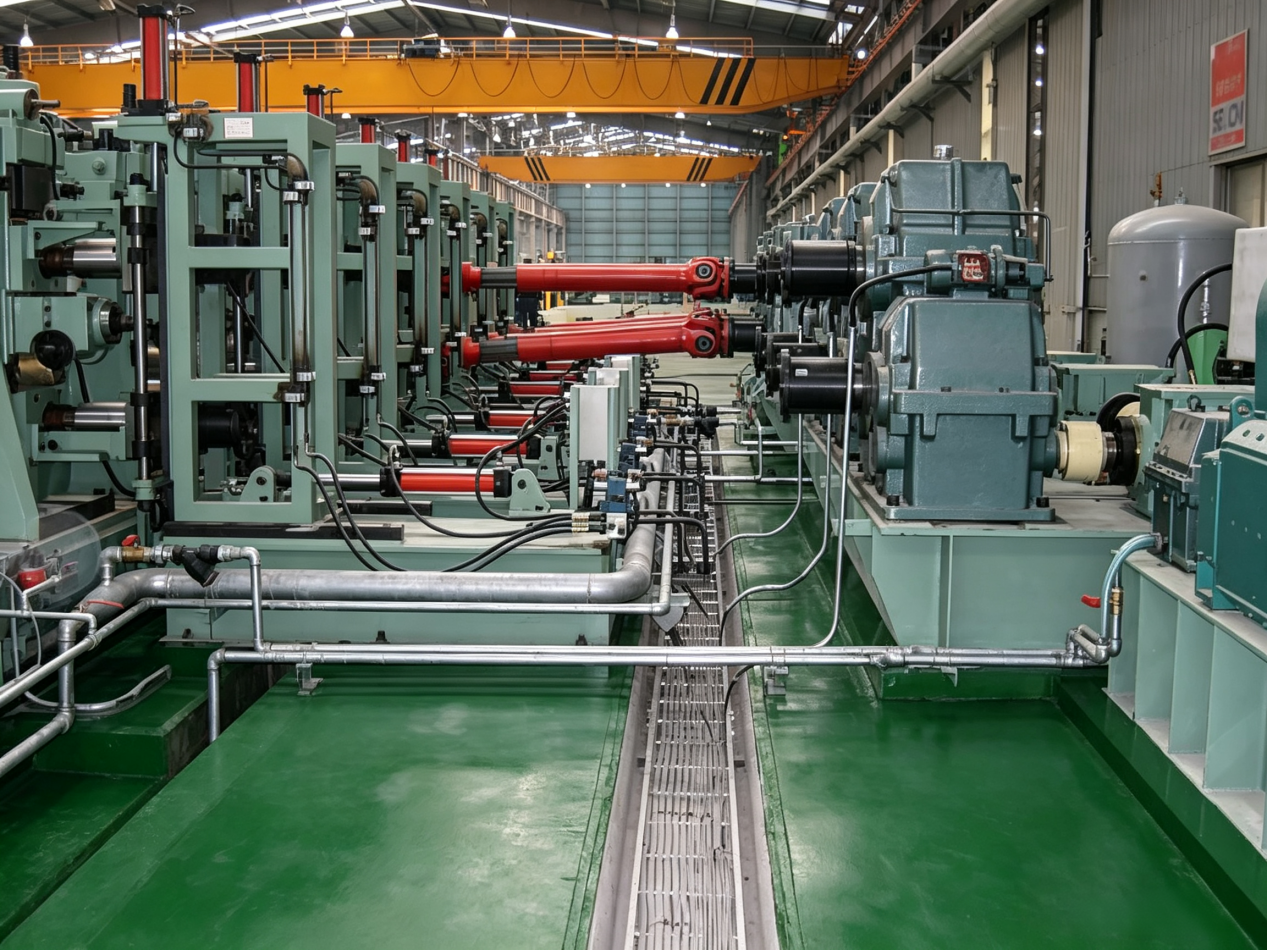

API Oil & Gas Pipe Production Line
Heavy-duty lines for high-grade, heavy-wall oil and gas transmission pipe.
Fengqi engineers gear strength, bearing life, forming, HF welding, NDT, heat treatment, hydrostatic testing and finishing around the required ASTM and API Spec 5L products.
COMPLETE PRODUCT INFORMATION
Product overview and technical information
Fengqi has many years of experience manufacturing high-grade, heavy-wall welded-pipe mills. Transmission gears are strength-checked, while the service life of bearings in the horizontal rolls, vertical rolls, squeeze rolls and gearboxes is calculated to maximize equipment reliability.
The PLC automatic control system makes pass adjustment convenient, reduces roll requirements and supports stable, reliable operation.
Process Features
- 01
The production line is equipped with pipe-finishing equipment.
- 02
It can produce high-strength oil pipe and casing that meet the confirmed ASTM and API Spec 5L requirements.
Production Process Flow
Coil loading → uncoiling → strip-head straightening → levelling → ultrasonic strip inspection → shear and butt welding → spiral accumulator → edge milling → forming → high-frequency welding → internal and external scarfing → ultrasonic weld inspection → grinding → medium-frequency normalizing → air cooling → water cooling → twist correction → sizing and finishing → Turk’s-head straightening → fixed-length cutting → sample testing → straightening → pipe-end facing → hydrostatic testing → ultrasonic final inspection → painting → marking → bundling → storage

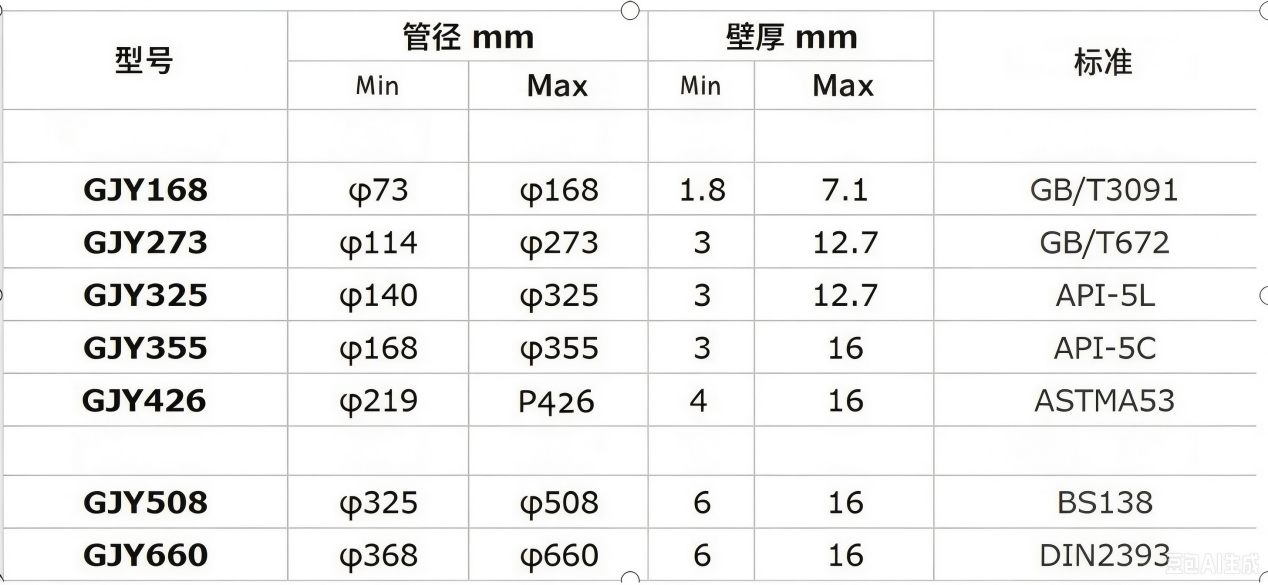

Common Reference Models
| Model | Pipe diameter min. (mm) | Pipe diameter max. (mm) | Wall min. (mm) | Wall max. (mm) | Reference standard |
|---|---|---|---|---|---|
| GJY168 | Ø73 | Ø168 | 1.8 | 7.1 | GB/T3091 |
| GJY273 | Ø114 | Ø273 | 3 | 12.7 | GB/T672 |
| GJY325 | Ø140 | Ø325 | 3 | 12.7 | API 5L |
| GJY355 | Ø168 | Ø355 | 3 | 16 | API 5CT |
| GJY426 | Ø219 | Ø426 | 4 | 16 | ASTM A53 |
| GJY508 | Ø325 | Ø508 | 6 | 16 | BS 138 |
| GJY660 | Ø368 | Ø660 | 6 | 16 | DIN 2393 |
Applications
- Oil transmission pipelines
- Natural-gas transmission pipelines
- High-strength oil pipe
- Oilfield casing
