AVAILABLE USED EQUIPMENT
Used Chinese ERW355 Tube Mill Line
An available large-diameter used ERW line from a leading Chinese brand. The mill was manufactured in 2016, first commissioned in 2017 and stopped in 2023 because of insufficient orders.
Finished pipe Ø165–355.6 mm | wall 4–12.7 mm | up to Ø355.6 × 16 mm in Q235-B
Request full file & video
PRODUCT OVERVIEW
Equipment description and reference data
This available domestic Chinese ERW355 line combines a heavy-duty forming and sizing mill with adjustable rough-forming stands and universal finishing and sizing stands.

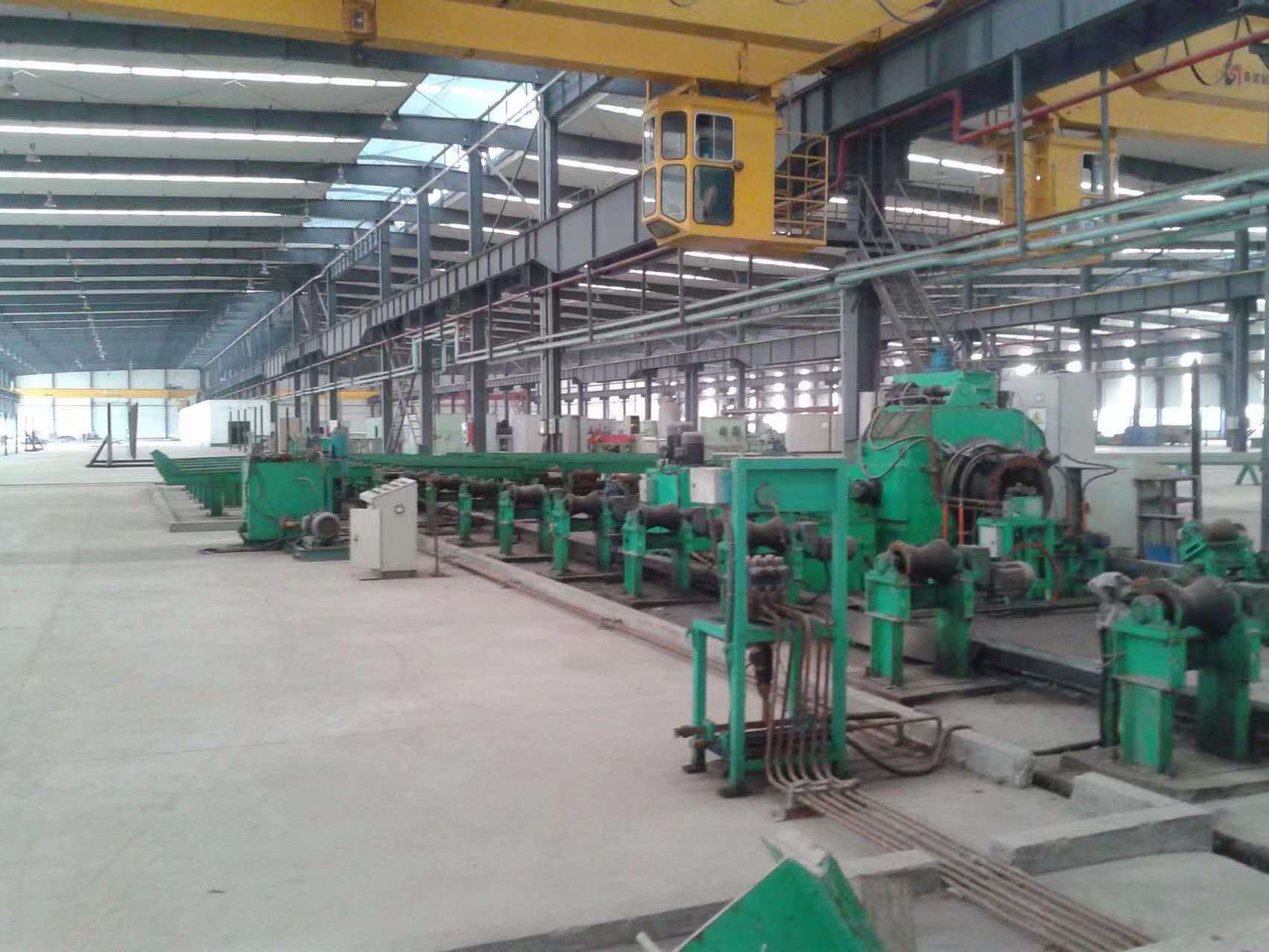

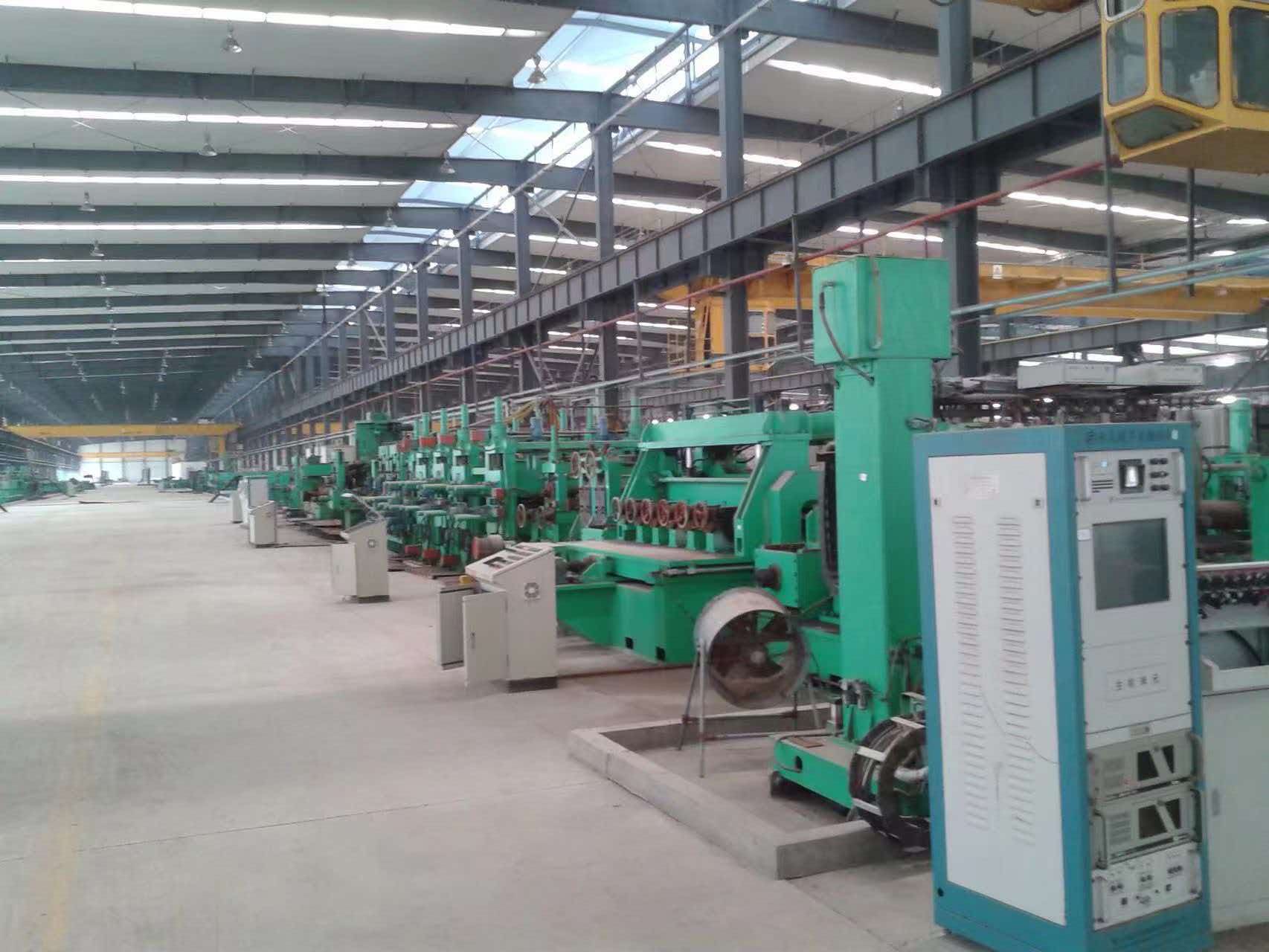

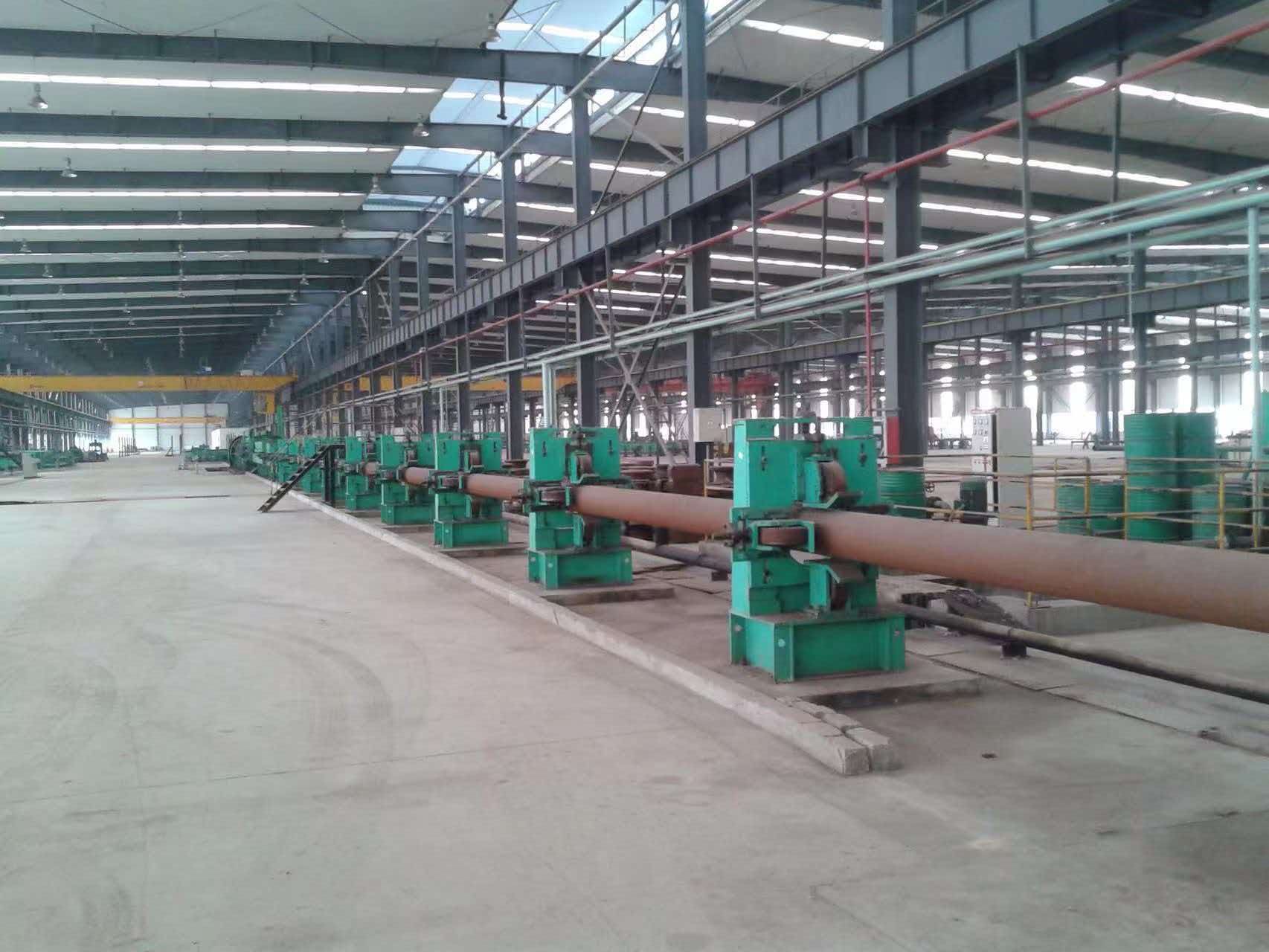

The line is offered as bare machinery at the current site. Photos were taken after shutdown and before dismantling; additional inspection video is available on request.
Process Features
- Double-cone uncoiler
- Strip end straightener
- Pinch roll and levelling machine
- Semi-automatic shear and butt welder
- Strip edge trimming machine

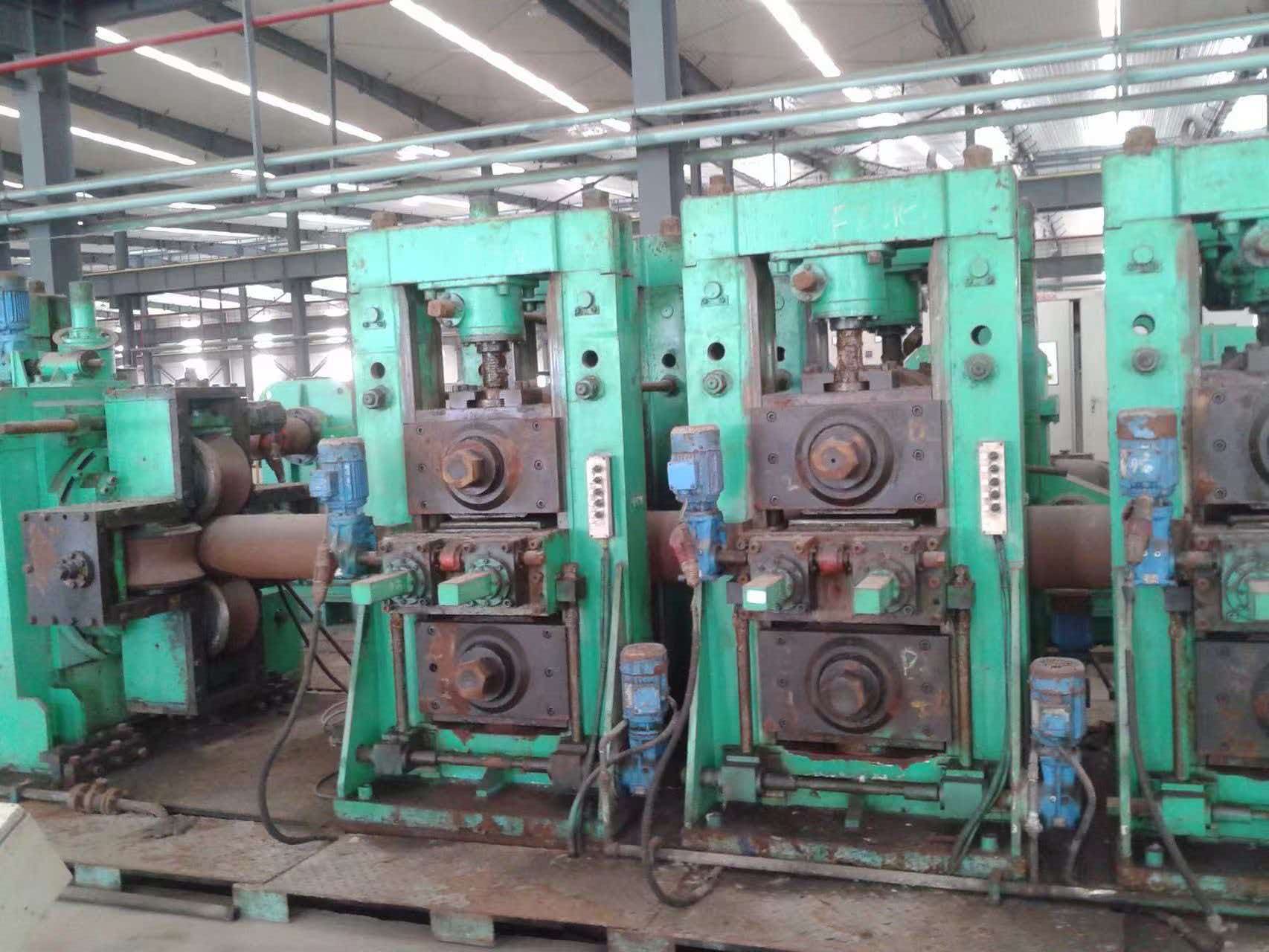

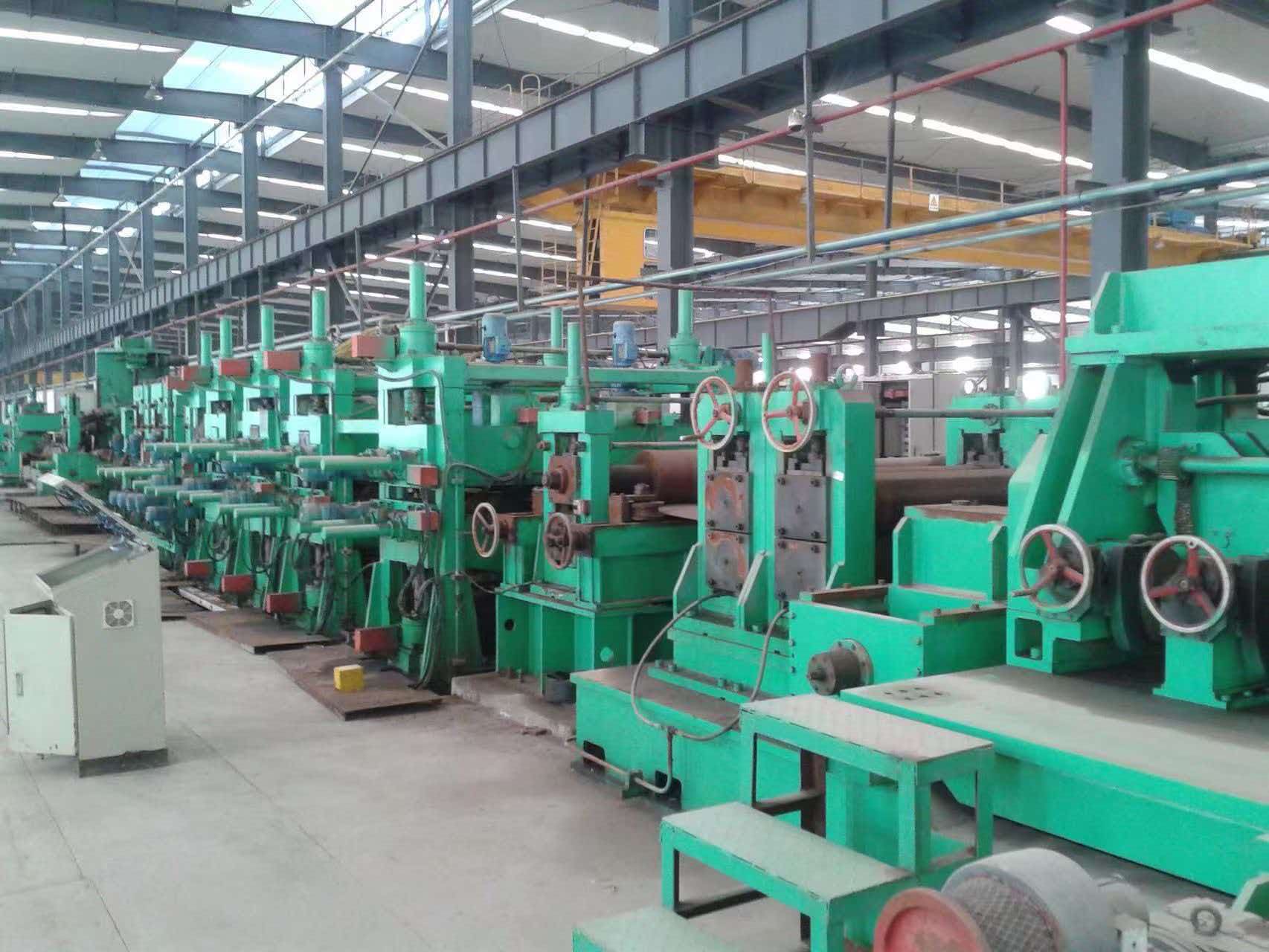

- Forming and sizing mill: 7 rough-forming horizontal stands with 3 vertical-roll groups; 3 universal finish-forming stands; 4 universal sizing stands; 1 horizontal stand; 1 polishing stand
- Profile-following milling machine
- Four roll sets for Ø355, Ø325, Ø245 and Ø219 mm
Production Process Flow
Uncoiling → strip end straightening → pinch levelling → shear and butt welding → edge trimming → forming → HF welding (optional new system) → sizing → polishing → profile-following milling cut-off
Technical Parameters
- Availability
- Available
- Manufactured
- 2016
- First commissioned
- 2017
- Production stopped
- 2023 — insufficient orders
- Finished pipe OD
- Ø165–355.6 mm
- Finished pipe wall
- 4–12.7 mm; up to 16 mm
- Special capability
- Q235-B: Ø355.6 × 16 mm
- Horizontal roll shaft
- Ø210 mm
- Side roll shaft
- Ø90 mm
- Current exclusions
- Accumulator, high-frequency welder and electrical control system
- As-is equipment price
- USD 696,970 — bare machinery at the current site
- Optional completion
- New HF welder and electrical control system; price quoted separately
Applications
- Structural steel pipe
- Ordinary low-pressure fluid pipe
- Large-diameter industrial welded tube
Current-condition sale or a refurbished, completed-line supply can be discussed after the buyer confirms the target products and required delivery scope.
APPLICATIONS
What this line can produce
- Structural steel pipe
- General fluid pipe
- Large-diameter industrial tube
- Non-API welded-pipe production
CONFIGURATION FOCUS
Included equipment and key points
- Advanced adjustable rough-forming section with strong roll commonality
- Four included roll sets: Ø355, Ø325, Ø245 and Ø219 mm
- Available as-is at the current site
- Optional completion with new HF welding and electrical control systems
LINE ARRANGEMENT
A complete production sequence
Uncoiling → strip end straightening → pinch levelling → shear and butt welding → edge trimming → forming → HF welding (optional new system) → sizing → polishing → profile-following milling cut-off
Final capability, condition and delivery scope are subject to technical inspection and the signed supply agreement.TECHNICAL FAQ
Common buyer questions
Is this an API pipe line?
No. The present line is intended for structural pipe and ordinary fluid pipe, not an API configuration.
What is excluded from the current scope?
The accumulator, high-frequency welder and electrical control system are not included. An accumulator can be added, and new HF welding and control systems are recommended.
Can the line be supplied complete?
Yes. It can be sold in its current condition or refurbished and completed around the buyer's required supply scope.
Request the complete used-equipment file
Send your target size, wall thickness, steel grade, destination country and preferred delivery scope.
